Building the Private Analytics Layer

5.4.1 VPC, Subnets, and Route Tables

• VPC CIDR: 10.0.0.0/16
• Public subnet: 10.0.0.0/20 → SBW_Project-subnet-public1-ap-southeast-1a
  • Hosts SBW_EC2_WebDB (OLTP EC2).
• Private subnet: 10.0.128.0/20 → SBW_Project-subnet-private1-ap-southeast-1a
  • Hosts SBW_EC2_ShinyDWH and SBW_Lamda_ETL.

Public Route Table

• 10.0.0.0/16 → local
• 0.0.0.0/0 → Internet Gateway

Private Route Table

• 10.0.0.0/16 → local
• S3 prefix list → Gateway VPC Endpoint for S3
• No 0.0.0.0/0 to IGW or NAT Gateway

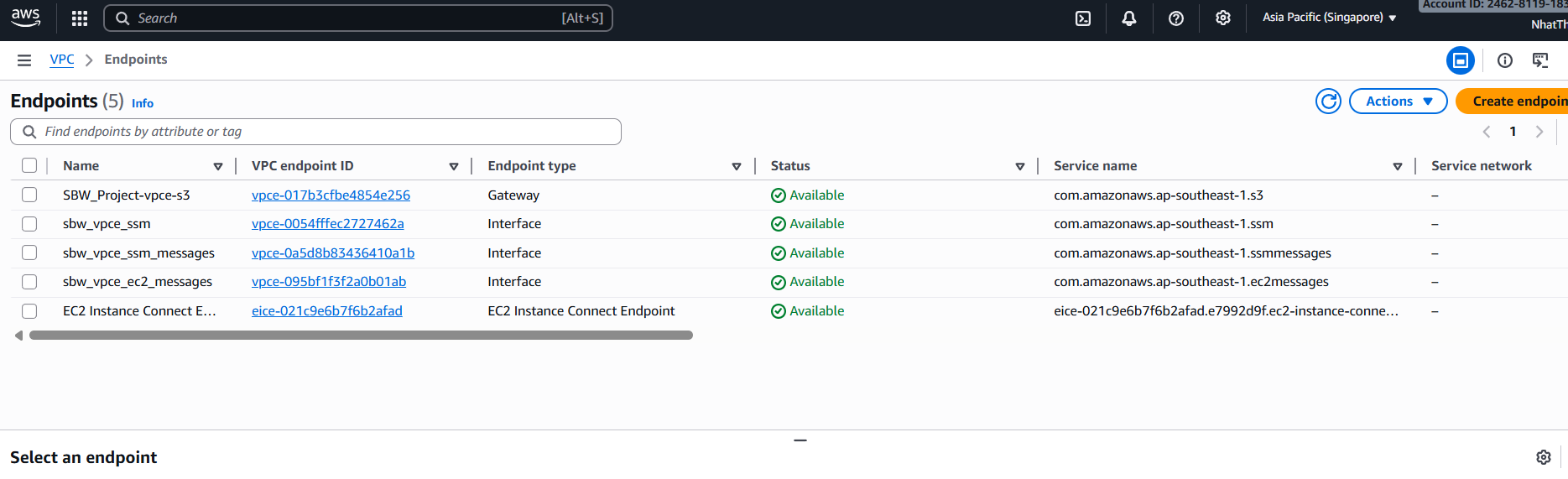

5.4.2 VPC Endpoints (S3 & SSM)

S3 Gateway VPC Endpoint

• Allows private S3 access for:
  • SBW_Lamda_ETL
• Eliminates the need for a NAT Gateway.

SSM Interface Endpoints

• com.amazonaws.ap-southeast-1.ssm
• com.amazonaws.ap-southeast-1.ssmmessages
• com.amazonaws.ap-southeast-1.ec2messages

These endpoints enable Session Manager to manage and port-forward into SBW_EC2_ShinyDWH without any public IP or SSH port.

5.4.3 Data Warehouse on EC2 – SBW_EC2_ShinyDWH

On the private EC2 instance:

• PostgreSQL DB: clickstream_dw
• Main table: clickstream_events with fields:

event_id
event_timestamp
event_name
user_id
user_login_state
identity_source
client_id
session_id
is_first_visit
context_product_id
context_product_name
context_product_category
context_product_brand
context_product_price
context_product_discount_price
context_product_url_path

The instance:

• SBW_Lamda_ETL conect postgreSQL DB: clickstream_dw
• Localhost web Shiny through SSM

5.4.4 ETL Lambda – SBW_Lamda_ETL (Private subnet-Enabled)

ETL Lambda is where batch processing happens.

VPC configuration:

• Subnet: SBW_Project-subnet-private1-ap-southeast-1a
• SG: sg_Lambda_ETL

Environment variables:

• DWH_HOST, DWH_PORT=5432, DWH_USER, DWH_PASSWORD, DWH_DATABASE=clickstream_dw
• RAW_BUCKET=clickstream-s3-ingest
• AWS_REGION=ap-southeast-1

Task:

1. Identify files in s3://clickstream-s3-ingest/events/YYYY/MM/DD/ for the target batch window.
2. For each JSON file:
   • Extra
   • Transform
   • Load

IAM role:

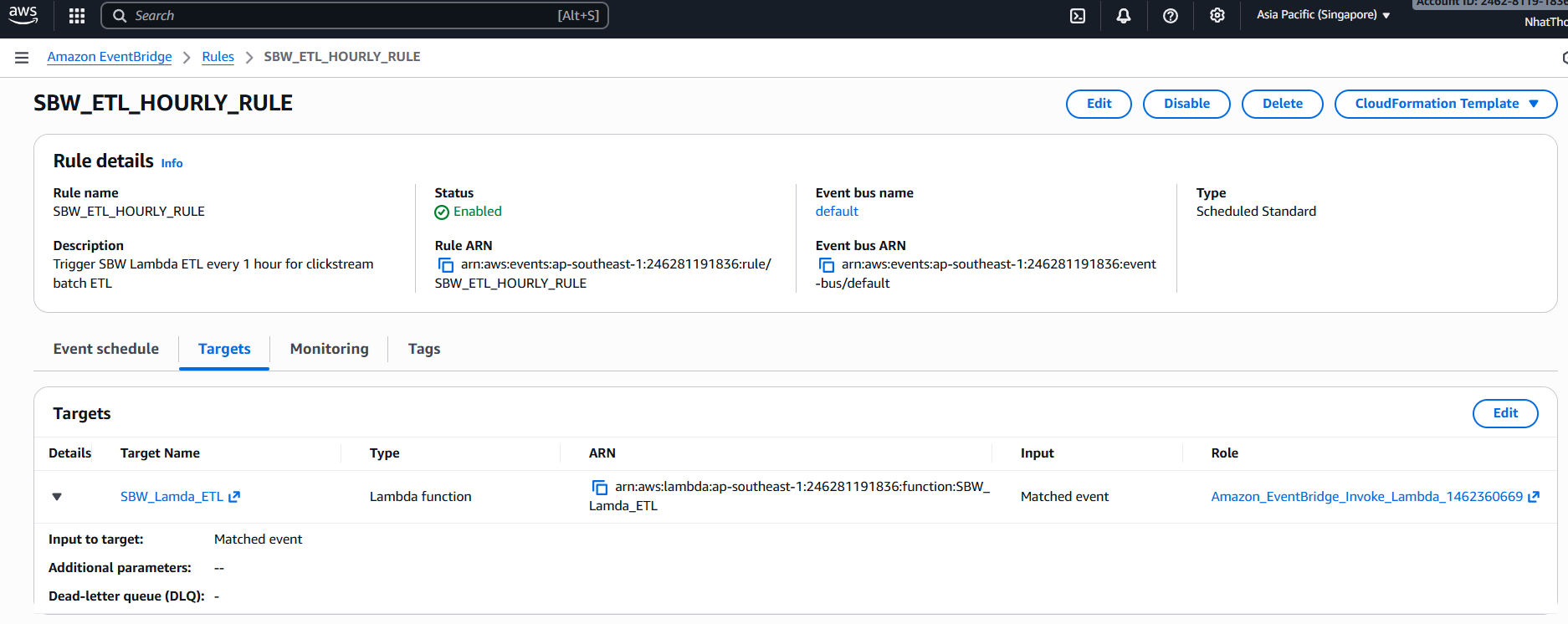

5.4.5 EventBridge Scheduling – SBW_ETL_HOURLY_RULE

EventBridge drives the batch nature of the platform:

• Rule name: SBW_ETL_HOURLY_RULE
• Schedule: rate(1 hour)
• Target: SBW_Lamda_ETL

Whenever the rule triggers:

1. ETL Lambda runs inside the private subnet.
2. Reads new raw events from S3 via the Gateway Endpoint.
3. Loads processed data into clickstream_dw.

We can also trigger the ETL Lambda manually (from the Lambda console) for ad-hoc backfills or testing.

5.4.6 Security Groups & Connectivity Summary

• sg_Lambda_ETL:

  • Outbound to S3 endpoint and sg_analytics_ShinyDWH:5432.

• sg_analytics_ShinyDWH:

  • Inbound 5432/tcp from sg_Lambda_ETL.
  • Inbound 3838/tcp for Shiny (accessible only via SSM port forwarding).
